Van mot chieu lo xo

Silent Check Valve

Design according to EN12334, ASME B16.1, ASME B16.42.
Flange drilled according to BS 4504 / EN1092-2 / JIS B2212 PN10, PN16, PN25
Inspection and test according to EN 12266
Internal and external coating by fusion bonded epoxy powder 250 micron thickness

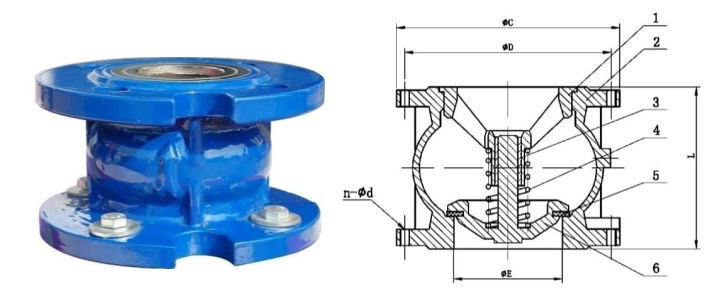

Parts

Parts Name	Material	Standard
Body	Ductile iron	BS2789
Disc	Ductile iron	BS 2789
Spring	Stainless Steel	BS 970
Seal	Synthetic Rubber	BS 2494

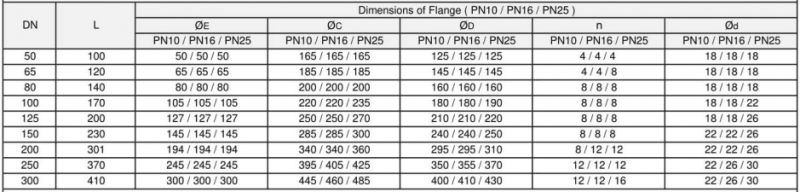

Dimensions
