Van buom

Van buom hai mat bich

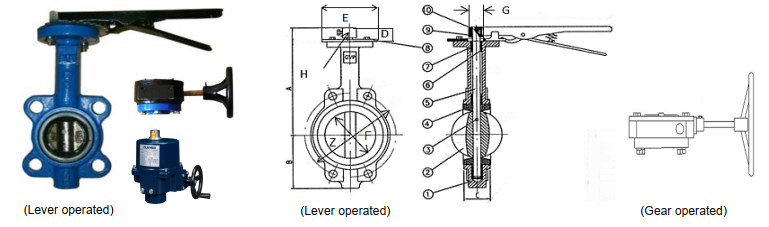

Butterfly Valve

Design according to DIN 3202 / API 609
Face to face according to DIN 3202 – K1 / API 609
Flange according to ISO 7005
Inspection and test according to API 598
Internal and external coating by fusion bonded epoxy powder 250 micron thickness

Parts

Parts Name	Material	Standard
Body	Ductile iron	BS2789
Disc	Stainless steel	BS 970
Stem	Stainless steel	BS 970
Lever	Ductile iron	BS2789

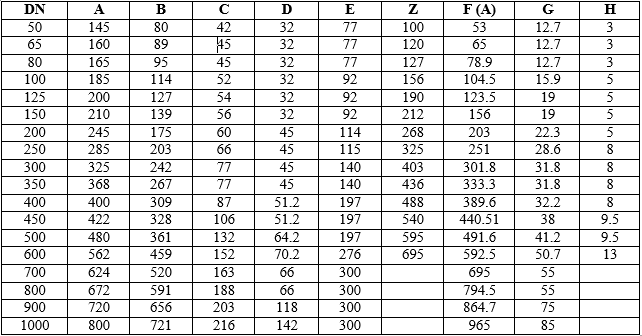

Dimensions
