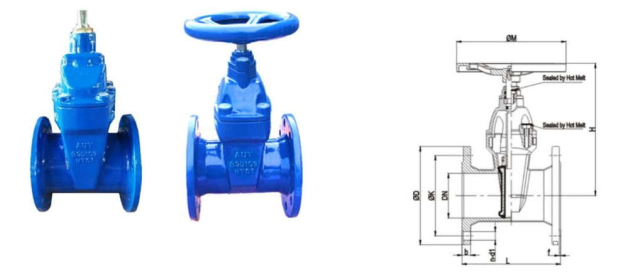

Gate Valve

Design according to BS 5163:1994, TYPE A
Face to face according to EN558-1

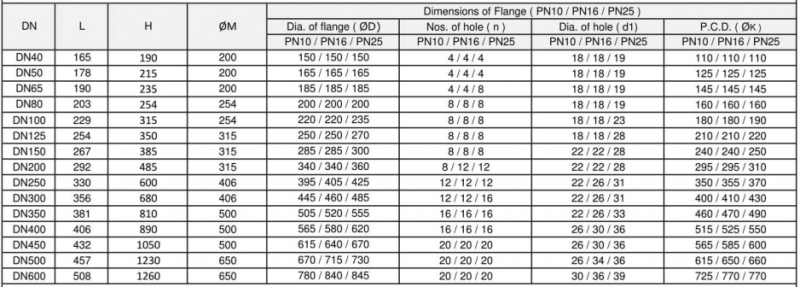

Flange drilled according to BS 4504 PN10, PN16, PN25
Inspection and test according to EN 12266
Internal and external coating by fusion bonded epoxy powder 250 micron thickness

Parts

Parts Name	Material	Standard
Body	Ductile iron	BS2789
Bonnet	Ductile iron	BS2789
Disc	Ductile iron covered rubber	BS2789/BS2494
Stem	Stainless Steel	BS970
Operated	Handwheel, Cap Gearbox or Electrical Actuator
