Single Ball Release Valve

Design according to BS , ISO standard
Flange drilled according to EN1092-2 PN10, PN16, PN25
Inner female thread according to BSP
Inspection and test according to API 598
Internal and external coating by fusion bonded epoxy powder 250 micron thickness

Parts

Parts Name	Material	Standard
Body	Ductile iron	BS2789
Ball Float	ABS	ISO 2580
Bolt	Carbon Steel	BS 1769
Bonnet	Ductile iron	BS 2789

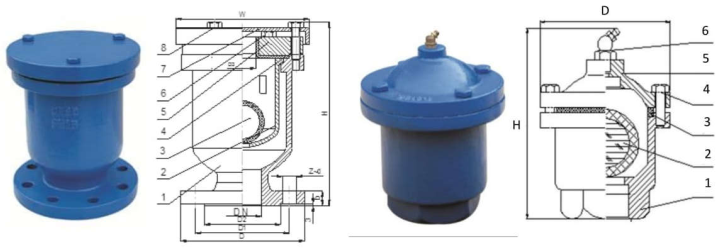

Dimensions

Thread Type:

DN	D	H
DN15 – DN20	88	125
DN25 – DN32	105	150
DN40 – DN50	150	177

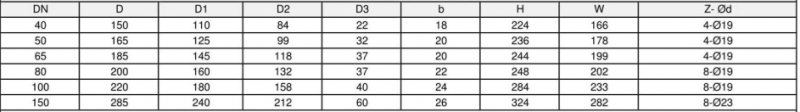

Flanged Type:
